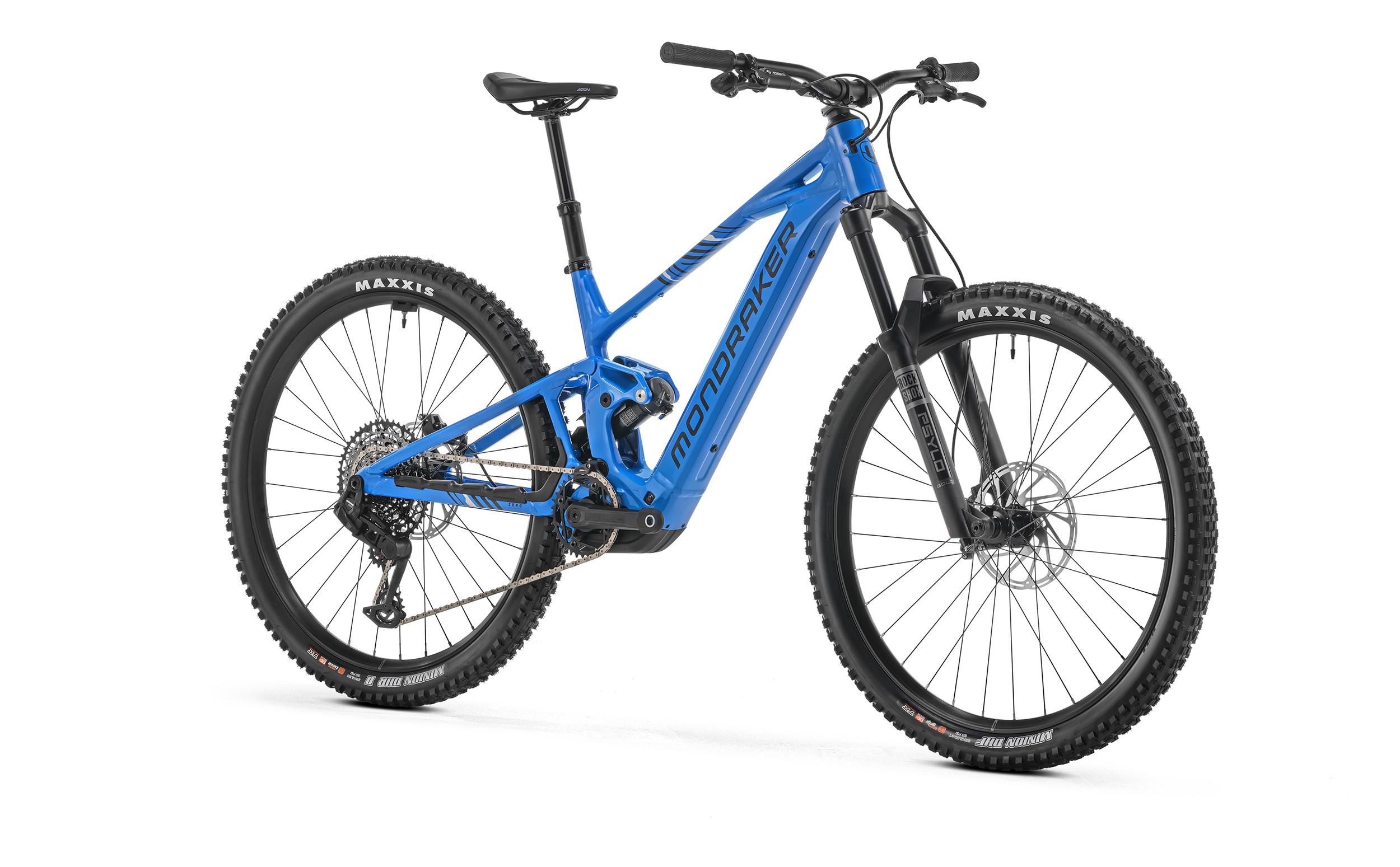

Mondraker Sly R
Available, delivery time: 2-5 working-days
Components
Technical Specifications
Frame
Alloy Stealth Evo 6061, Zero Suspension System optimized, 150 mm travel, Forward Geometry, internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece top link, HHG internal cable routing, MAX capacity sealed bearings, 15 mm oversized axles, exclusive plastic motor covers.
Sizes
S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
Shock absorber
Rockshox Deluxe Select+, 185x55mm, Trunnion upper mount, 30x8mm lower bushings
Shock absorber adjustment
L compression, digressive return, 4 tokens
Fork
Rockshox Psylo Gold RC, 160mm, 3 positions, Debon Air, tapered head tube, 15x110mm Boost pivot, 35mm steel chainstay, 44mm offset. Settings: low-speed compression adjustment to lock, return, air preload
Headset
Acros custom IS52/ZS56, head tube 1-1/8“, 1.5”, internal grommet, blocklock-less sealing plugs
Handlebar stem
ONOFF S3 30 mm 0º, 6061 forged alloy, 31.8 mm barbore
Handlebar
ONOFF S3 1.0 alloy 6061, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, barbore 31.8 mm. Size L and XL: rise 1.5.
Knobs
ONOFF Forest, CNC lock-on, 135 mm
Seatpost
ONOFF Pija internal telescopic, 31.6mm diameter, remote 1X lever with bearing, size S: 140-115mm (388-235mm), size M: 160-135mm (428-255mm), size L: 180-155mm (468-275mm), size XL: 210-185mm (528-305mm)
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram DB8 stealth, 4-piston caliper, Centerline 200mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
Rear brake
Sram DB8 stealth, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6-bolt IS, organic pads with steel backing
Brake Levers
Sram Code DB8, SwingLink and lever pivot bearings, tool-free reach and contact point adjustment
Rims
Mavic E-CrossRide 29, 30 mm inner width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double-thickness, tacking (lacing) contactless
Front hub axle
Mavic, Boost 15x110 mm, 6-bolt IS
Rear hub axle
Mavic, Boost 12x148 mm, Ratchet ID360 ratchet system, 6-bolt IS, XD free hub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Cranks
e*thirteen Helix Core E*Spec Plus, all sizes: 160 mm
Crankset
Sram X-Sync 2 Eagle 34T, steel, narrow-width, 104 BCD
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Gearbox - Rear
Sram X0 Eagle AXS T-Type,12s
Gear shifters
Sram Eagle AXS Pod MMX, 12s
Cassette Sprockets
Sram XS-1270, 10-52T, T-Type 12s
Weight without pedals
20.9 kg
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
| Product number: | TB0239680301 |
|---|---|
| Manufacturer number : | 010.2522 |
ZERO SUSPENSION SYSTEM - TECHNOLOGY
ZERO is Mondraker’s proprietary most efficient, best performing and super capable suspension system. ZERO is individually designed, set up and optimised for the best pedalling efficiency and biggest hit capability on each Mondraker full suspension model across the range, from little Factor 24 or F-Play 24 models to Summum Alloy and Summum Carbon World Cup & World Championship winning downhill bikes.
ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.
ZERO superior technologies’ main advantages are Zero power loss -a completely stable ride when pedalling-, Zero pedal kickback-minimum chain growth throughout the suspension travel-, Zero brake jack –isolated braking and suspension forces- and what we call Zero bumps, its great ability to soak up any type of bump keeping the rear wheel efficiently planted on the ground.
ADVANTAGES:
• ZERO POWER LOSS. High pedalling efficiency. The power applied to pedals is transformed to immediate forward motion without any extra compression or extension of the rear shock.
• ZERO PEDAL KICKBACK. Chain length growth throughout the suspension travel is minimum, so pedalling is as effective and efficient as possible.
• ZERO BRAKE JACK. Rear brake forces do not work against suspension forces. The rear shock works supple and freely and absorb impacts without any suspension stiffening caused for the rear brake action.
• ZERO BUMPS. The most remarkable feature of the system is its excellent suppleness on rough terrain and a completely stable ride when pedalling.
You can find Mondraker’s exclusive and patented Zero Suspension System on all Mondraker full suspension mountain bike range.
E-BIKE OPTIMIZED ZERO KINEMATICS
Global evolution in the entire collection of Mondraker e-MTB full suspension models and common feature in all of them is the optimization of the ZERO System specifically designed for the category. The same attributes of ZERO System that we apply for the rest of our full suspension models can also be applied to the entire range of electric mountain bikes, with three differentiating and exclusive traits of the new e-Bike optimized ZERO kinematics.
